VT-Type Safety Chucks

  • Product Images:
    • Images:
  • Data Sheets:
    • Name: Safety-Chuck-Mini, File:
    • Name: Safety-Chuck-170-230, File:
    • Name: Safety-Chuck-120-180, File:
    • Name: Safety-Chuck-80-120, File:
    • Name: Safety-Chuck-50-80, File:
    • Name: Safety-Chuck-40-50, File:
    • Name: Safety-Chuck-30-40, File:
    • Name: Safety-Chuck-22-30, File:
    • Name: Safety-Chuck-19-25, File:

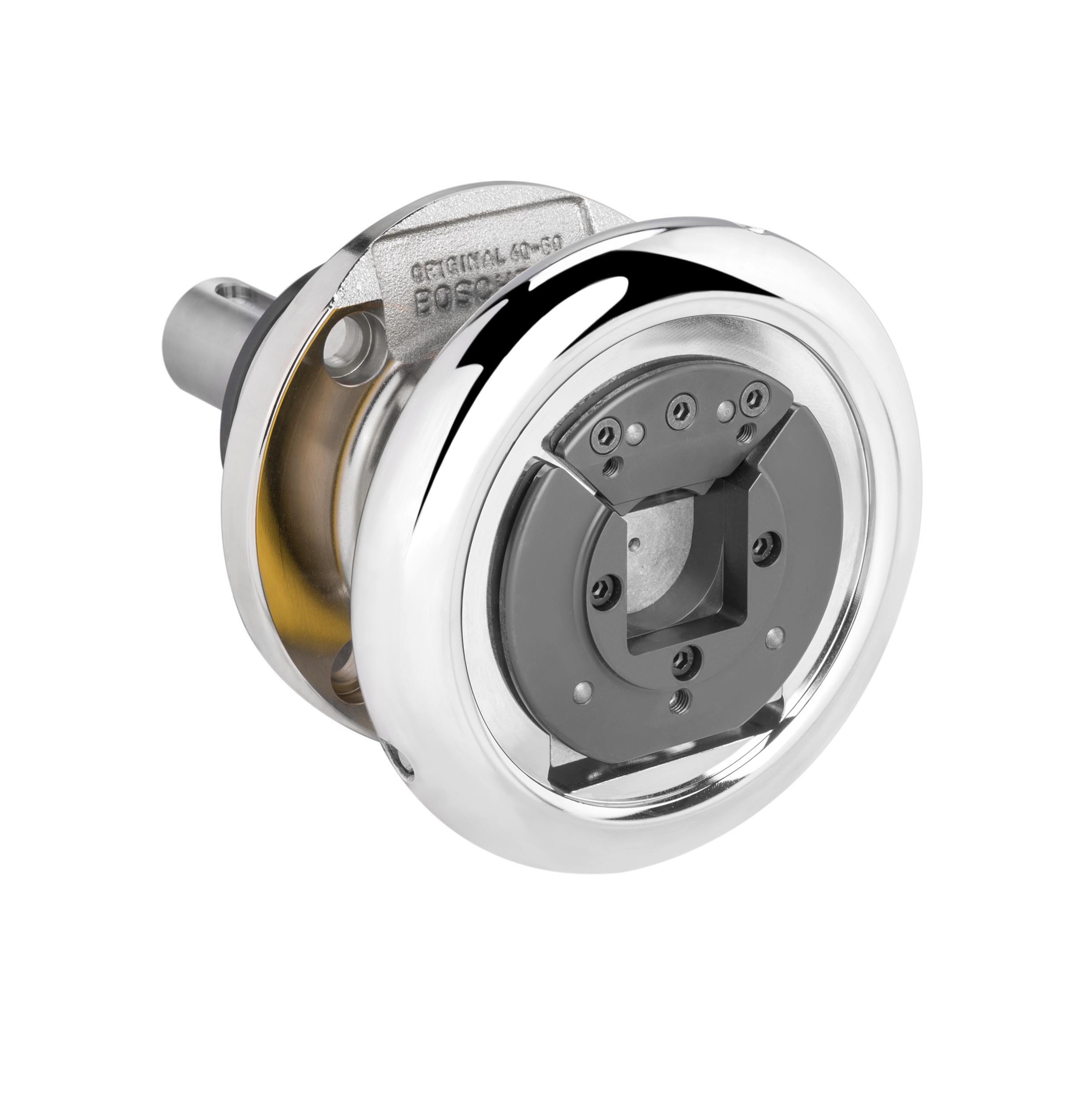

Boschert VT Safety Chuck have replaceable inserts which can be changed quickly and easily. Being able to replace the major wear parts ensures downtime is kept as low as possible with reduced cost over the life of the chuck.

VT Safety Chucks offer the following features:

  • Replaceable inserts available in a wide range of shapes and sizes
  • Inserts available in different hardnesses to suit customer requirements
  • Flange or pedestal pillow block mounting
  • Standard or bespoke shafts to suit customer brake or drive requirements
  • Chromed handwheel
  • Rubber finger guard

Available inserts:

  • Square (VT1 & VT2)
  • Triangular (VT6)
  • Square/Round (VT7)

VT7 inserts are a special design which support the shaft on the round section, and transmit torque through the square section. This ensures smooth running throughout the life of the insert.

CHUCK SIZES

Type Max. Beam Mass (kg) Max. Torque (Nm) Square Dimensions (mm)
Mini 150 40 14-20
19-25 400 120 19-25
22-30 800 180 22-30
30-40 1600 350 30-40
40-50 2800 1100 40-50
50-80 7000 2350 50-80
80-120 12000 10000 80-120
120-180 22000 20000 120-180
170-230 64000 41000 170-230
