Product Description

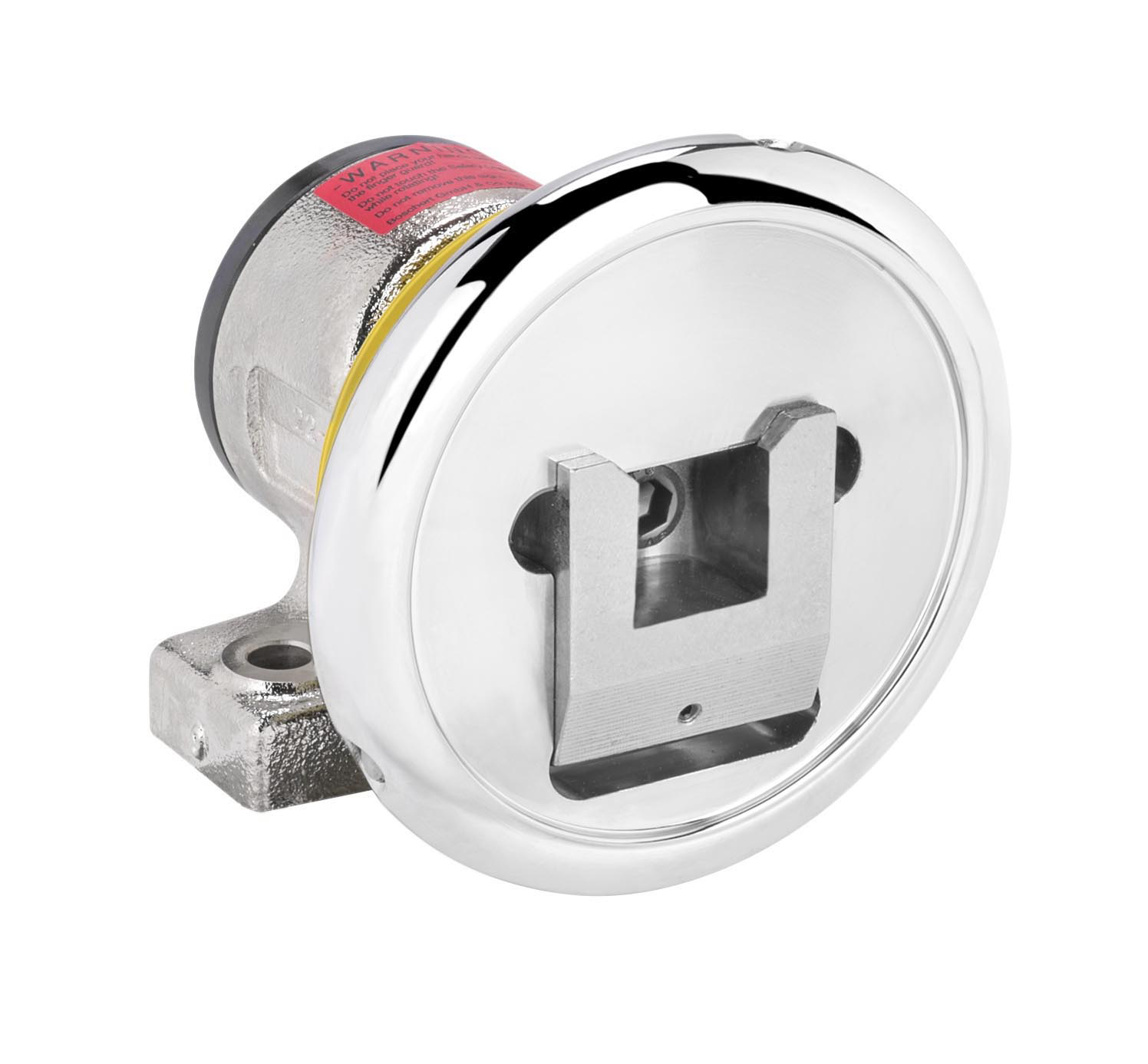

Since the Boschert C Safety Chuck was introduced in 1948, it has become the industry standard. It is a versatile and high quality product which remains competitively priced.
C Safety Chucks offer the following features:
- Flange or pedestal pillow block mounting
- Standard or bespoke shafts to suit customer brake or drive requirements
- Chromed handwheel
- Rubber finger guard
- Hardened square pocket
CHUCK SIZES
| Type | Max. Beam Mass (kg) | Max. Torque (Nm) | Square Dimensions (mm) |
|---|---|---|---|
| Mini | 150 | 40 | 14-20 |
| 19-25 | 400 | 120 | 19-25 |
| 22-30 | 800 | 180 | 22-30 |
| 30-40 | 1600 | 350 | 30-40 |
| 40-50 | 2800 | 1100 | 40-50 |
| 50-80 | 7000 | 2350 | 50-80 |
| 80-120 | 12000 | 10000 | 80-120 |
| 120-180 | 22000 | 20000 | 120-180 |
| 170-230 | 64000 | 41000 | 170-230 |
Data Sheets
