Hyperion 971IPS-30 Extra Long-Range Pulsed DC Ionising Bar

  • Optimum working distance - 450-1500mm suitable for long reach applications such as slitter rewinders, transit bag machines and turret rewinders.
  • Integrated power supply (IPS) - the integrated power supply delivers +/- 30kV pulsed DC.
  • Air Boost (air amplification) - additional performance can be achieved through the use of integrated air support.
  • Removable titanium emitters - emitter pin assemblies are designed to be easy to clean and replace, allowing the 971IPS-30 to maintain performance for many years.
  • Low voltage wiring - requiring a 24V DC power supply eliminates the need for high-voltage wiring to the ionisation strip.
  • Adjustable output - frequency and balance can be adjusted with the optional BarMaster programmer.
Order Product
Technical Enquiry

Product Description

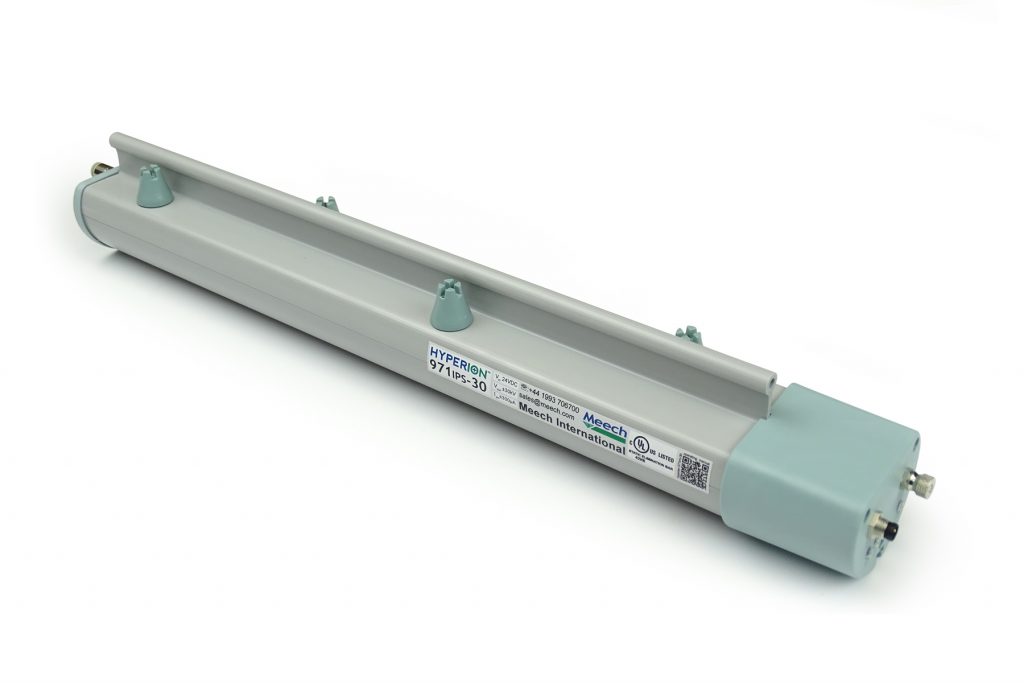

The Meech Hyperion™ 971IPS-30 is a powerful pulsed DC ionising bar designed for very long-range static control applications, making it ideal for machines such as slitter rewinders, turret winders and other large-format converting equipment. It features an integrated +/-30 kV 24 V DC power supply, delivering some of the highest ionising output in the Hyperion range.

With an operating distance from approximately 450 to 1500 mm, the 971IPS-30 tackles static over extended reach where shorter bars are not suitable. Built-in Ion Current Monitoring (ICM) technology helps maintain performance by signalling when cleaning or maintenance is needed via local and remote alarms. Output frequency and balance can be adjusted with a remote programmer to suit specific conditions.

At Motion Drives & Controls, we supply the Meech Hyperion™ 971IPS-30 with technical support and application guidance, helping you choose and implement the right static control solution for long-range industrial production processes.

Manufacturers

Meech
